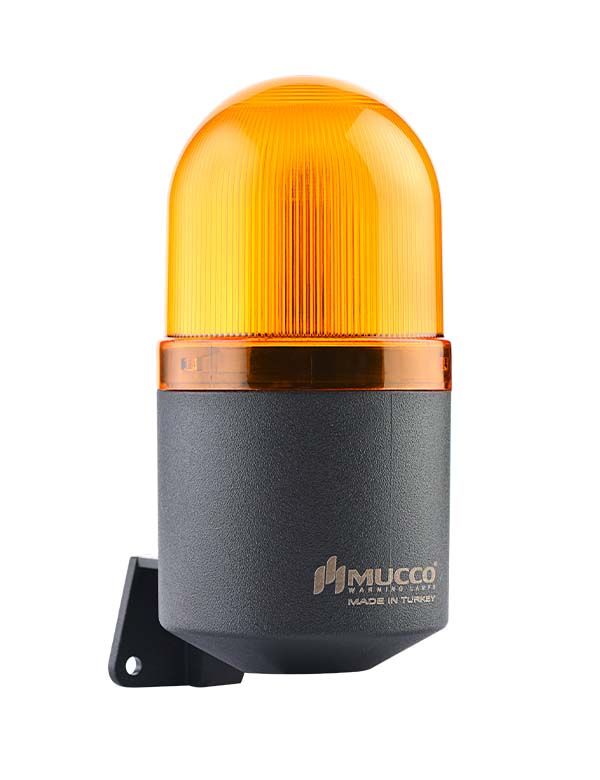

Avertisseur lumineux et sonore série MCOAVT
- Flasheur Ø70mm
- LED SMD
- 12-24V AC/DC – 40-250V AC/DC
- Plusieurs combinaisons de sons et de flashs
SIGNALISATION LUMINEUSE
| Current | 12-24V AC/DC | 250mA ±10% |
| 40-250V AC/DC | 50mA ±10% 50-60 Hz | |
| Body material | ABS (Body) + Polycarbonate (Lens) | |
| Lens colors | Red, Yellow | |
| Lens diameter | ø70mm | |
| Light source | SMD LED | |
| Light mode | Steady, Flashing, Strobe | Internal button change |
| Input response time | on/off: 10ms max. | |
| Tone | 16 tone | Internal button change |
| Alarm | 95-127 dB at 1m (3.3ft) | Can be adjusted with potentiometer |
| Connection | Wire | |
| Mounting type | Wall | |
| Operation conditions | -20°C to +50°C (-4°F to +122°F) | |
| Expected life | Min. 50,000 hrs | |
| Degree of protection | IP65 | |
| Protection | Water, Dust, Heat, and UV Ray Resistant | |
| Certificates & Quality Doc. | ISO-9001, CE, RoSH2 and EAC |
